20A 1000V Cooper Bussmann Solar PV Fuse

Be the first to review this product

Availability: Out of stock


Quick Overview

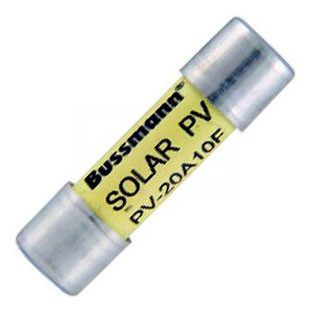

20A 1000V Cooper Bussmann Solar PV Fuse PV-20A10F


Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • PV-20A10F
  • PV Fuse Dimensions
  • PV Fuse Temperature Derating
  • PV Fuse Time-Current Characteristics


Cooper Bussmann LogoCooper Bussmann is a wholly owned division of Cooper Industries, Inc. (NYSE: CBE) and is headquartered in St. Louis, Missouri, USA. With a more than 90-year history of innovation, the company has set the standard for circuit protection in the global market.


Cooper Bussmann manufactures and markets a wide variety of North American and European-styled fuses for the electrical, electronics and transportation industries, plus inductors, transformers for power quality in electronic applications and industrial and mobile wireless solutions. Cooper Bussmann also offers engineering, training and testing services focused on downtime reduction, workplace safety and code compliance.




A range of fuse links in a 10x38mm package specifically designed for the protection and isolation of photovoltaic strings. The fuse links are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.


PV-10A10F Features

»  PV Fuse Coordination w/: Thin film cells and 4”, 5” and 6” crystalline silicon cells.
»  Min Interrupting Rating: 1.3 x In
»  Superior cycling capability

IEC 60269-6, UL 2579 (File number E335324), CSA, CCC (1-15A), RoHS compliant


Technical Specifications

Part Number PV-10A10F
Rated Current (Amps) 20 Amps
I2t (A2 Sec) - Pre-arc 34
I2t (A2 Sec) - Clearing @ 500v 350
Watts Loss (0.8In) 2.1 W
Watts Loss (In) 3.6 W
Fuse Size 10 x 38 mm
