GIGAVAC GX14 750V 350A Contactor 12VDC Coil c/w Aux

Be the first to review this product

Availability: Out of stock

$272.00

Quick Overview

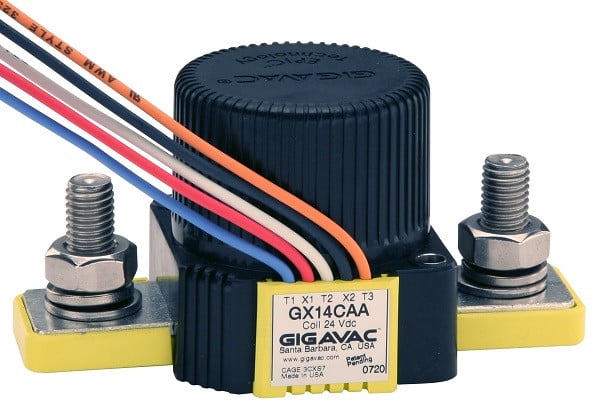

GIGAVAC GX14 750V 350A Contactor



GIGAVAC GX14 750V 350A Contactor 12VDC Coil c/w Aux

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • GIGAVAC GX14 750V 350A Contactor 12VDC Coil c/w Aux
  • GIGAVAC GX14 750V 350A Contactor 12VDC Coil c/w Aux
  • GIGAVAC GX14 750V 350A Contactor 12VDC Coil c/w Aux

Additional Information

Coil Voltage 12VDC
Contact Voltage Rating 750Vdc/Vac
Contact Current Rating 350A

Details

GIGAVAC LogoGIGAVAC's GX Series EPIC® (Extended Performance Impervious Ceramic) sealed DC Contactors and AC contactors switch both low and high voltage from 12 to 750, both DC and AC. These small RoHS compliant hermetically sealed contactors can be mounted in any position, can be used in nearly any harsh environment including under water and at temperatures from –55°C to 85°C .

They are the preferred contactor (they are also sometimes called a relay or solenoid) for heavy trucks and equipment, busses, emergency vehicles, electric vehicles, hybrid vehicles, boats, light rail, mining, oil and factory automation,  power management systems for battery charging,  fuel cells, battery backup, solar, wind and wave power systems where long life and high reliability are needed.






Features At A Glance

»  Chassis Level UL508 sized power terminals - no need for specially routed power cables, special bus bars or specialised lugs.
»  Rugged EPIC® Seal rated to 175°C - Reduced risk of fire of meltdown in overcurrent conditions
»  Hermetically Sealed - For use in hazardous locations, IP67, external ignition protection
»  High Efficiency Dual DC Coils - Very low 12 or 24VDC continuous coil power with EMI emissions or cross talk on your system control power.
»  Built-in coil suppression for all DC coils
» Stainless steel hardware and mounting inserts
» cRUus® recognised






Coil Ratings @ 25°C



GX14

Coil P/N Designation B
Coil Voltage - Nominal 12 VDC
Coil Voltage, Max 15 VDC
In-Rush current Max (75 ms) 4.0 Amps
Hold Current after in-rush (Avg) 0.3 Amps
Hold Power after in-rush (Avg) 3.6 Watts
Pick-up, Max 7.5 VDC
Hold, Min 5.0 VDC
Drop-out, Min 0.5 VDC
Coil Back EMF 45 VDC






Product Specifications



Data

Units

 Contact Arrangement (Main) SPST-NO  Form X
Contact Arrangement (Aux) SPST-NO Form A
Mechanical Life 1 million Cycles
Contact Resistance
 » Max @ rated carry current 0.4 mohms
 » Typical @ rated carry current 0.15 to 0.3 mohms
Operate Time, 25°C
 » Close (includes bounce) Mac 20 ms
 » Close (includes bounce) Typical 13 ms
 » Bounce on close, Max 7 ms
Release time (inc. arc time at max break current) 12 ms
Insulation Resistance 100 Mohms
Dialectric at sea level (leakage < 1mA) 2.200 VRMS
Shock (peak) 20 G
Vibration, Sinusoidal (500-2000Hz Peak) 15 G
Operating ambient Temp Range -55 to +85 °C
Storange ambient Temp Range -70 to +175 °C
Weight, Typical 0.5 Kg






UL Compliant DC & AC Contact Current Carry Ratings

  75°C / 50°C
Cable Size 400 KCmil
Continuous, UL508 Max 350 / 400 A
 » 10 seconds (1 time) 525 / 710 A
 » 100 seconds (1 time) 390 / 510 A
 » 300 seconds (1 time) 350 / 400 A
Starter Carry - Inrush 250ms (10 repeats) NA / 2,000 A
Starter Carry - Cranking 10 sec (10 repeats) NA / 500 A
Maximum Terminal Temp, Continuous 175°C
Maximum Terminal Temp, Intermittent 225°C






UL Compliant DC & AC Estimate Contact Power Switching Ratings

Make & Break Resistive Current
with 400 KCmil cable
and 50° terminal temp rise

Contact Voltages & Life Cycle Ratings DC

 24 V 48 V 72 V 120 V 350 V
350 A - (75°C Ambient)  112,500  75,000 37,500 15,000 3,000
225 A - (75°C Ambient)  150,000 100,000 50,000  20,000 4,000
150 A - (75°C Ambient)  180,000  120,000  60,000  24,000 4,800
125 A - (75°C Ambient)  225,000  150,000  75,000 30,000 6,000
100 A - (75°C Ambient)  300,000  200,000  100,000 40,000 8,000
75 A - (75°C Ambient)  435,000  290,000  145,000  58,000 11,600
50 A - (75°C Ambient)  750,000  500,000  250,000  100,000 20,000
30 A - (75°C Ambient)  900,000  600,000  300,000  120,000  24,000
20 A - (75°C Ambient)  1,000,000 700,000  350,000  140,000 28,000
400 A - (50°C Ambient)  90,000 60,000  30,000  12,000 2,400
Max Break A, 2 cycles
(75°C Ambient)
2,500 A 2,300 A  2,100 A  1,900 A 1,700 A
Mac Break A, 10 Cycles
(75°C Ambient)
1,000 A 900 A  800 A  700 A 600 A
