GIGAVAC GX16 750V 600A Contactor 12VDC Coil c/w Aux

Be the first to review this product

Availability: Out of stock


Quick Overview

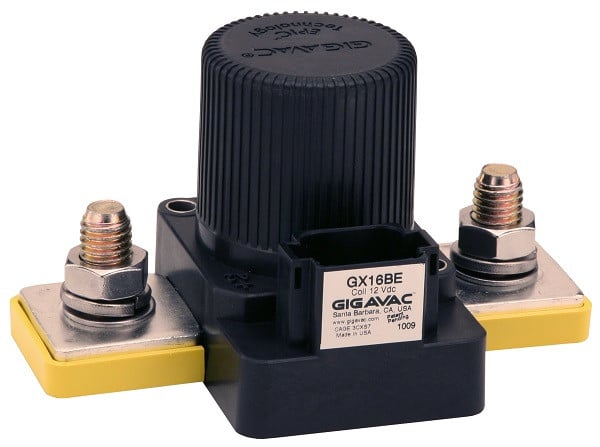

GIGAVAC GX16 750V 600A Contactor c/w Aux Contact


GIGAVAC GX16 750V 600A Contactor 12VDC Coil c/w Aux

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • GIGAVAC GX16 750V 600A Contactor 12VDC Coil c/w Aux
  • GIGAVAC GX16 750V 600A Contactor 12VDC Coil c/w Aux
  • GIGAVAC GX16 750V 600A Contactor 12VDC Coil c/w Aux

Additional Information

Coil Voltage 12VDC
Contact Voltage Rating 800Vdc/Vac
Contact Current Rating 600A


GIGAVAC LogoGIGAVAC's GX Series EPIC® (Extended Performance Impervious Ceramic) sealed DC Contactors and AC contactors switch both low and high voltage from 12 to 750, both DC and AC. These small RoHS compliant hermetically sealed contactors can be mounted in any position, can be used in nearly any harsh environment including under water and at temperatures from –55°C to 85°C .

They are the preferred contactor (they are also sometimes called a relay or solenoid) for heavy trucks and equipment, busses, emergency vehicles, electric vehicles, hybrid vehicles, boats, light rail, mining, oil and factory automation,  power management systems for battery charging,  fuel cells, battery backup, solar, wind and wave power systems where long life and high reliability are needed.



Features At A Glance

»  Chassis Level UL508 sized power terminals - no need for specially routed power cables, special bus bars or specialised lugs.
»  Rugged EPIC® Seal rated to 175°C - Reduced risk of fire of meltdown in overcurrent conditions
»  Hermetically Sealed - For use in hazardous locations, IP67, external ignition protection
»  High Efficiency Dual DC Coils - Very low 12 or 24VDC continuous coil power with EMI emissions or cross talk on your system control power.
»  Built-in coil suppression for all DC coils
» Stainless steel hardware and mounting inserts
» cRUus® recognised



Coil Ratings @ 25°C



Coil P/N Designation B
Coil Voltage - Nominal 12 V
Coil Voltage, Max 16 V
Pick-Up Voltage, Max 7.5 V
Drop-Out Voltage 0.5 to 4.5V
Pick-Ip Current, Max (75ms) 3.8 A
Coil Current 0.64 A
Coil Power 7.8 W
Internal Suppression Yes
Coil Back EMF 55 V
Transients, Max (13ms) ±50 V
Reverse Polarity 16 V



Product Specifications




Contact Arrangement (Main) SPST-NO  Form X
Contact Arrangement (Aux) SPST-NO or NC Form A or B
Mechanical Life 1 million Cycles
Contact Resistance
 » Max @ rated carry current 0.3 mohms
 » Typical @ rated carry current 0.11 to 0.2 mohms
Operate Time, 25°C
 » Close (includes bounce) Mac 20 ms
 » Close (includes bounce) Typical 13 ms
Release Time, Max 7 ms
Insulation Resistance 100 Mohms
Dialectric at sea level (leakage < 1mA) 2.200 VRMS
Shock (peak) 20 G
Vibration, Sinusoidal (500-2000Hz Peak) 15 G
Operating ambient Temp Range -55 to +85 °C
Storange ambient Temp Range -70 to +175 °C
Weight, Typical 0.9 Kg
Continuous Current (400MCM Conductor) 600 Amps
Environmental Seal Exceeds IP67 & IP69K
Salt Fog MIL-STD-810
