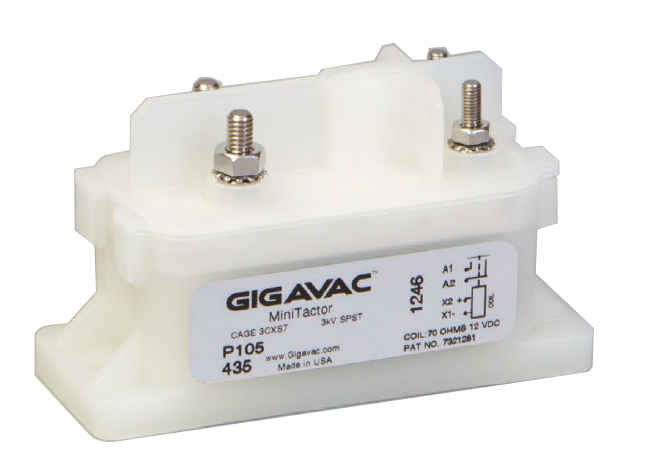

GIGAVAC MiniTACTOR P105B 1200V 50A Contactor 12VDC Coil

Be the first to review this product

Availability: Out of stock

$119.00

Quick Overview

GIGAVAC MiniTACTOR P105B 1500V 50A Contactor



GIGAVAC MiniTACTOR P105B 1200V 50A Contactor 12VDC Coil

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • GIGAVAC MiniTACTOR P105B 1200V 50A Contactor 12VDC Coil
  • GIGAVAC MiniTACTOR P105B 1200V 50A Contactor 12VDC Coil

Additional Information

Coil Voltage 12VDC
Contact Voltage Rating 1200VDC
Contact Current Rating 50A

Details

GIGAVAC's GX Series EPIC® (Extended Performance Impervious Ceramic) sealed DC Contactors and AC contactors switch both low and high voltage from 12 to 750, both DC and AC. These small RoHS compliant hermetically sealed contactors can be mounted in any position, can be used in nearly any harsh environment including under water and at temperatures from –55°C to 85°C .

They are the preferred contactor (they are also sometimes called a relay or solenoid) for heavy trucks and equipment, busses, emergency vehicles, electric vehicles, hybrid vehicles, boats, light rail, mining, oil and factory automation,  power management systems for battery charging,  fuel cells, battery backup, solar, wind and wave power systems where long life and high reliability are needed.

Features at a Glance

  • Small, lightweight and cost effective Patented design
  • Hermetic seal assure safe clean switching
  • Make / Break switching to 1500VDC
  • Can be installed in any position - not position sensitive
  • Capable of bi-directional switching
  • Perfect choice for pre-charge, charge and solar applications

Product Specifications

Data

Units

 Contact Arrangement SPST-NO  Form X
 Voltage, Test Max  6000 VDC
Voltage, Operating Max  1200 VDC
Continuous Current Carry, Max 50 A
Electrical Life (Resistive Load)
 » Make and Break, 1A @ 1200VDC 1000 Cycles
 » Make and Break, 5A @ 1000VDC 10,000 Cycles
 » Make and Break, 10A @ 800VDC 2,000  Cycles
 » Make and Break, 20A @ 600VDC 5,000 Cycles
  » Make and Break, 50A @ 200VDC 5,000 Cycles
  » Make and Break, 50A @ 48VDC 50,000  Cycles
 Mechanical Life 1,000,000 Cycles
Voltage Drop, Max @ 50A 100 mV
Operate Time, Max  25  ms
Release Time, Max  8 ms
Vibration, Sinusoidal (50-200Hz Peak) 5 G
Shock, Operating, 1/2 Sine, 11ms 20 G
Temperature, Operating Range -40 to 65 °C
Humidity, No freezing or Condensing at Low Temperatures  5% to 85% RH
 Weight 100  grams

Coil Ratings @ 25°C

P105B

P105C

Coil Voltage - Nominal 12 VDC  24VDC
Coil Voltage, Max 14 VDC 28 VDC
Pick-ip Voltage, Max 7.5 VDC 16 VDC
Drop Out Voltage, Max 5 VDC 9 VDC
Coil Resistance (± 10%) 70 Ohms 280 Ohms
Coil Current at Nom. Voltage 0.180 A 0.090 A
Recommended External Coil Suppression 24 VDC 48 VDC
