Delphi Universal 2.2kW DC-DC Converter

Be the first to review this product

Availability: Out of stock

$1,850.00

Quick Overview

Inputs


» HV supply Voltage 216 - 422V DC
» Low Voltage Inputs 7 - 15.5 V DC
Good for use in Electric & Hybrid vehicles and other Industrial transportation

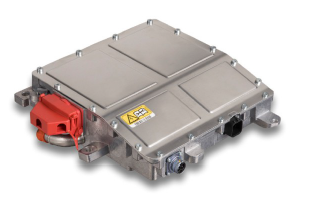

Delphi 2200W DCDC Converter

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Delphi 2200W DCDC Converter
  • Delphi Universal 2.2kW DC-DC Converter

Details

Delphi LogoThe Delphi™ DC-DC converter gives you extreme performance and highly efficient power when and where you need it. The manufactured 2.2kW unit creates DC voltages in hybrid and electric vehicles necessary to power 12VDC based components. Liquid-cooled, the DC/DC converter operates at input voltages from 216 to 422VDC with a bi-directional power range max 2.2kW.

Easy, Basic Installation

The Delphi™ DC-DC converter uses standard buck converter technology, it will efficiently convert power from a high-voltage DC source (typically a 300V battery pack) into 14V power. The unique feature is its ability to run the converter backwards as a boost converter to provide low current charging (2.35 amps maximum) to the high-voltage source/battery pack from the 14V supply.

Electrical interface to the vehicle is very simple. The internal controller derives its internal power from the vehicle 14V battery only. The DC-DC converter uses a switching power supply to produce regulated 5V and 12V power. Aside from a discrete IGN hardware (wake-up input) and the high power outputs, all other interface to and from the DC-DC converter is through high speed CAN. The DC-DC will wake up with IGN but requires enabling CAN messages before normal operation can occur. Once normally operating, the production of 14V power is independent of the low voltage input.



Features

»  Currently in production
»  Proven automotive design, reliable even in the harsh environment of the engine compartment
»  Highly efficient conversion using synchronous rectification
»  Applicable to multiple vehicle platforms without re-engineering
»  Analog output voltage is adjustable through CAN serial communication; 11V – 15.5V
» Bi-directional capability supports charging of high-voltage battery
» Over-voltage, over-current, and over-temperature protection with fault reporting
» CAN serial interface


Technical Specifications

Dimensions 253 x 257 x 80 mm
Volume 4.2 L
Weight 5.0 kg
Operational Life 15 Years / 10,000 Hrs
Cooling 50/50 mixture H2O/glycol (10L/min)
Environment Body mounted, under hood
Coil Power -40ºC to +110°C
Efficiency 90%
Inputs
 » HC supply Voltage 216 - 422V DC
 » LV 7 - 15.5 V DC
Outputs
 » HV -> LV 2.2kW, max 175A @ 12.5V
 » LV -> HV 600W, max 2.35A on HV
