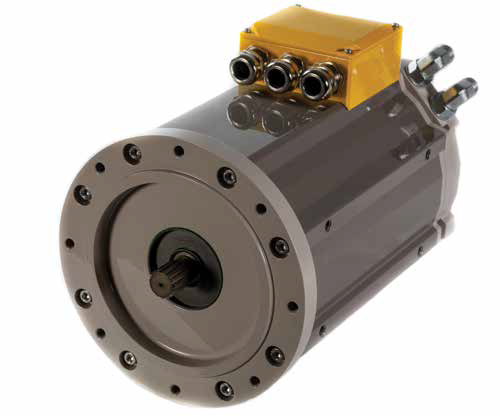

Parker GVM210-300 Electric Vehicle AC Traction Motor 350 VDC

Be the first to review this product

Availability: Out of stock

$15,500.00

Quick Overview

Parker GVM210-300 High Performance Electric Vehicle AC Traction Motor for 350VDC Systems

Parker GVM210-300 Electric Vehicle AC Traction Motor 350 VDC

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Parker GVM210-300 Electric Vehicle AC Traction Motor 350 VDC
  • Parker GVM210-300 Electric Vehicle AC Traction Motor 350 VDC
  • Parker GVM210-300 Electric Vehicle AC Traction Motor 350 VDC
  • Parker GVM210-300 Electric Vehicle AC Traction Motor 350 VDC

Details

The GVM (Global Vehicle Motor) is Parker’s PMAC offering for electric and hybrid electric powertrain motors, and electro-hydraulic actuation.

The GVM utilizes highly engineered magnetics to achieve efficiencies in peak regions not obtainable in other designs. It uses a new patent-pending advanced cooling system that has minimal impact on the size and weight of the motor. The scalability of the GVM allows the widest performance range available.

  • Samarium Cobalt (SmCo) magnets allow high temperature operation and removes demagnetization.
  • Highly efficient design reduces thermal dissipation requirements, lowering overall cooling system costs.
  • Very low torque ripple - even at peak current.
  • Low rotor inertia for high dynamic responsiveness.
  • Can provide up to 20% more range for a given battery pack.
  • Ultra-thin stator laminations with reduced slots virtually eliminates eddy currents.
  • Patent pending cooling configuration yields very high cooling effectiveness regardless of motor length.
  • Meets SAE J1455 heavy duty vehicle environmental standards.
