Cascadia Motion (Rinehart Motion Systems) PM150DX 400V 450Arms

Be the first to review this product

Availability: In stock


Quick Overview

PM150DX - 150kW

DC Voltage: 50 - 400Vdc
Motor Current:  450Arms cont.
  450Arms peak
Dimensions: 436x200x87mm
Unit Weight: 10.7kg

Rinehart Motion Systems PM150DX 150kW EV Motor Controller

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Rinehart Motion Systems PM150DX 150kW EV Motor Controller
  • Rinehart Motion Systems PM150DX 150kW EV Motor Controller
  • Rinehart Motion Systems PM150DX 150kW EV Motor Controller
  • Rinehart Motion Systems PM150DX_DZ Dimensions
  • Rinehart Motion Systems

Additional Information

System Voltage 160 - 360Vdc
Motor Current Continuous 450Arms
Motor Current Peak 450Arms


RMS Rinehart Motion Systems LogoCascadia Motion (formerly Rinehart Motion Systems) has extensive experience in automotive and military vehicle traction and power electronics and produces the smallest, lightest drives for HEV propulsion in everything from tow vehicles to the pinnacle of motorsports. Cascadia Motion has achieved a major breakthrough in integrating Traction Control into an electric vehicle.

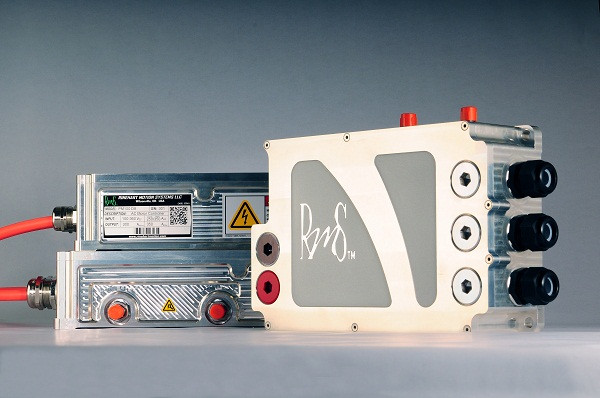

The PM family of automotive class traction control motor drives evolved from RMS’ proprietary Formula 1 based packaging technology and approach. These are the lightest, smallest sealed and automotive ready drives available anywhere.

The Rinehart Motion Systems PM150DX is an AC Motor Controller designed for on-road and off-road Electric Vehicle (EV) or Hybrid Electric Vehicle (HEV) applications.

The PM150DX Traction drive is fabricated using a patented high heat flux thermal design approach that dramatically reduces the size and weight of the finished drive and improves it's life in the automotive environment.

RMS offers several different models within the PM Family of motor controllers to suit the DC bus voltage and motor current requirements of your specific vehicle. The PM Family has been designed to operate with many types of motors, including Induction Motors (IM) and Permanent Magnet motors (PMSM or IPM).

PM Controller Electrical Specifications

PM Controller General Specifications

PM Hardware Features
